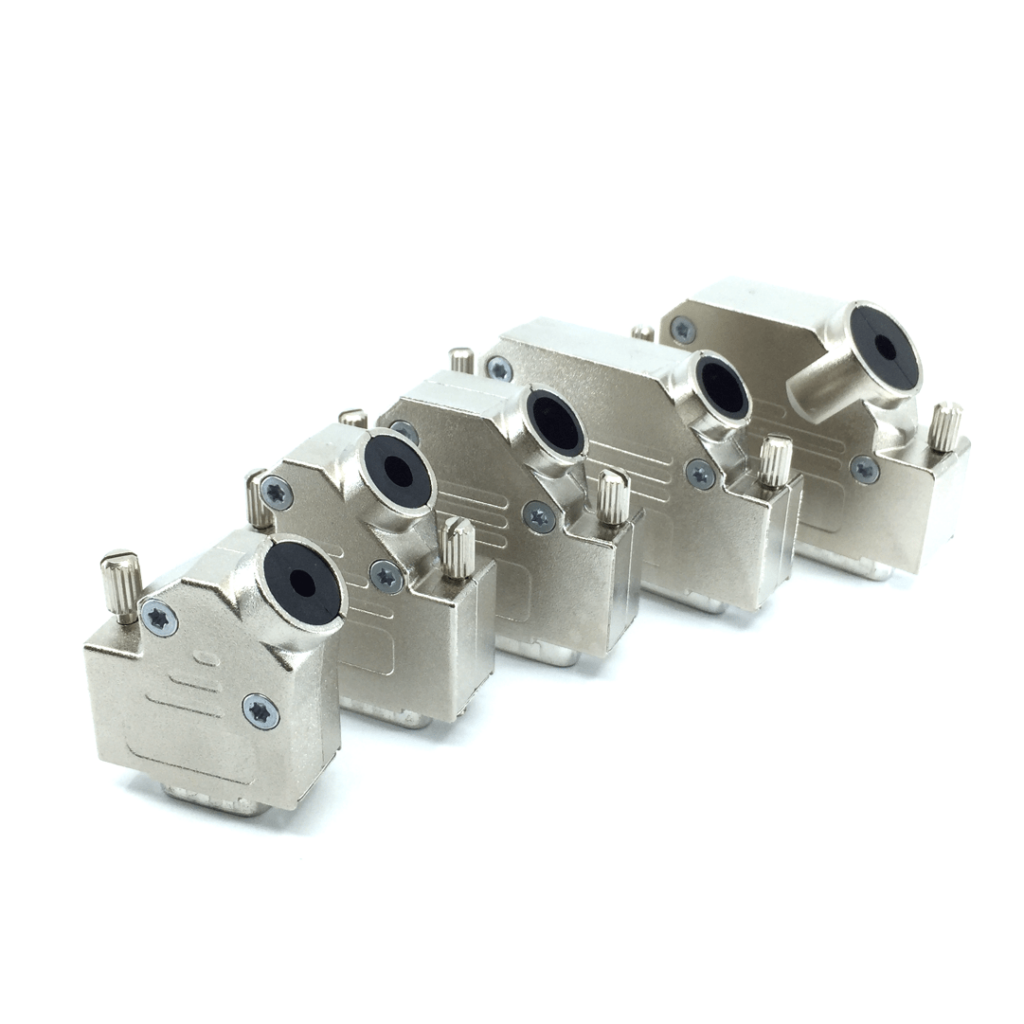

OSSI DVZK-JSS SERIES, Die Cast Zinc, Ni-Plated 45 Degree Angle D-Sub Solutions

Looking for custom backshell solutions?

Custom Backshells Contact Us

DVZK-JSS SERIES

Features:

  • Zinc die-cast with Ni-plated surface
  • Temp. range: -40° C – 120° C
  • Cable strain relief: Strain relief set in 4 sizes: 4 – 9 mm (9 – 37-way) Strain relief set in 5 sizes: 4 – 11 mm (50-way)
  • Cable diameter: 4.0 – 13.0 mm (DTZK50 <17 mm)
  • Locking screws: Long jackscrew with groove for indication of thread
  • Thread options: UNC4-40, M2.5, M2.6 or M3.0
  • Mounting torques assembly screws: 100 – 120 Ncm
  • Mounting torque locking screws: 50 Ncm
  • Company logotype: Printed on request
  • Attenuation factor: 40 dB between 30 MHz and 1 GHz
  • Sizes available: 9, 15, 25, 37 and 50-way
