SSC – Smart Serial Backshell and Connectors

Zinc die-cast & nickel plated full metal Backshells, and male & female connector cables.

  • Products
  • SSC – Smart Serial Backshell and Connectors
Smart Serial Connector And Die Cast Hood. SSC Back Shell Kits. Optional IDC or Solder Connector. Custom SSC Cable Lengths.

Looking for custom backshell solutions?

Custom Backshells Contact Us

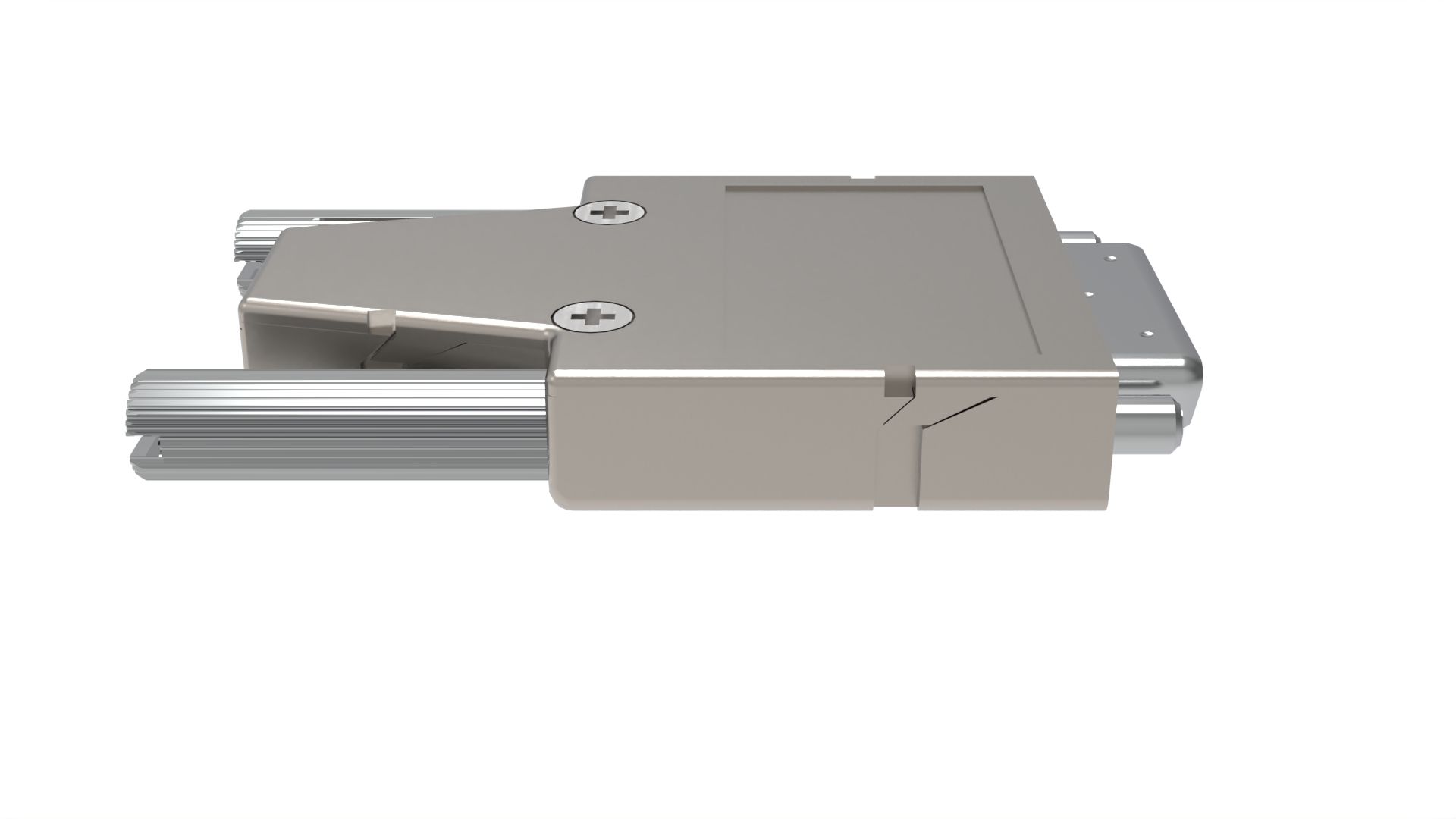

Smart Serial Backshell and Connectors

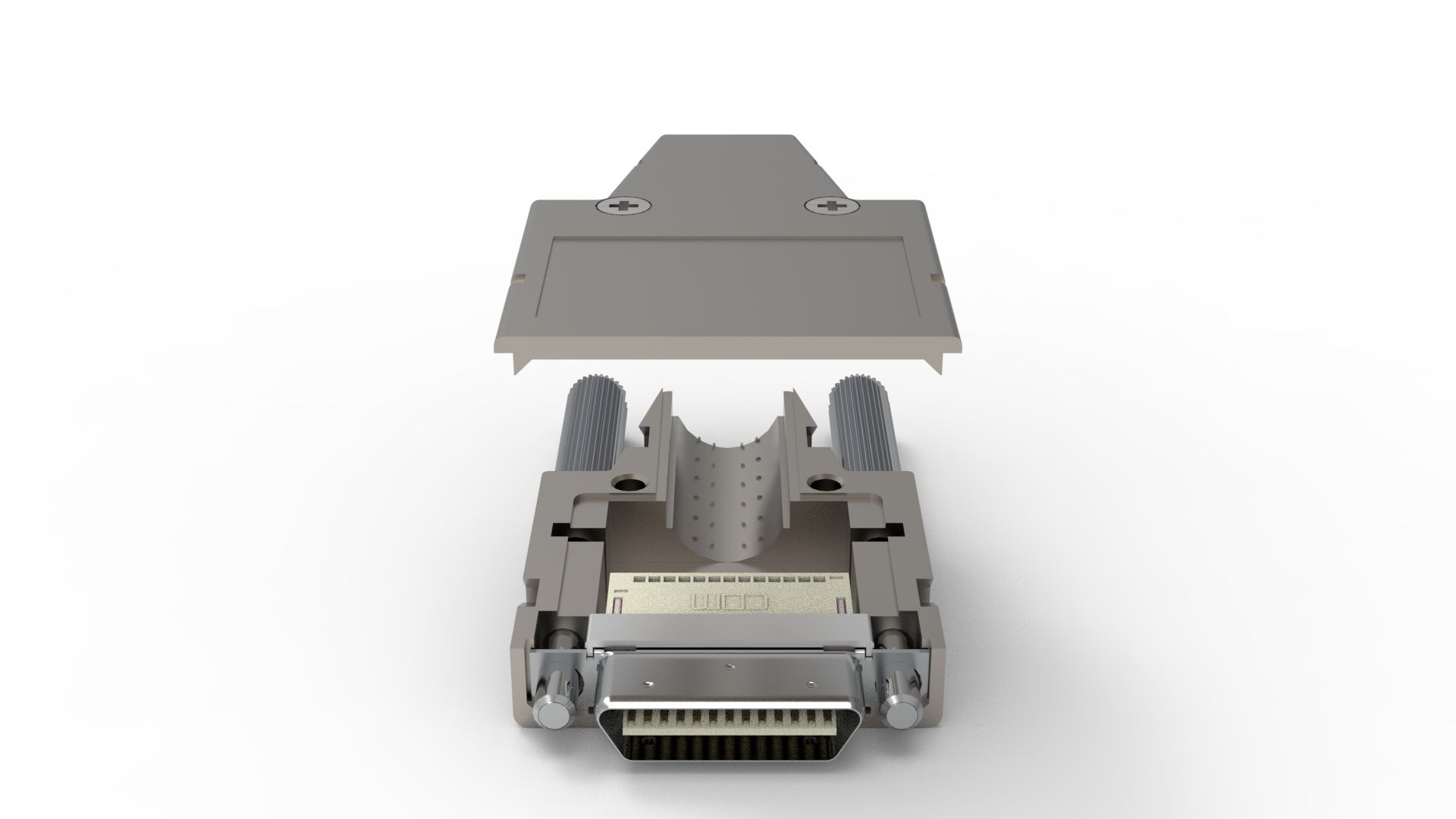

Full Metal Backshell:

  • Diecast Zinc, Ni Plated
  • Ni Plated UNC 4-40 Jackscrews
  • Phillips Head Hood Screws
  • Low Carbon Spacer (securing the connector)
  • Accommodates up to 7.3 mm 13 pair 28 awg Cable

Male Connector:

  • Ni-Plated Steel Shell
  • Phosphor Bronze Short Plates
  • Phosphor Bronze Contacts
  • LCP (Liquid Crystal Polymer) Body and Cover

Female Connector:

  • Ni-Plated Steel Shell
  • Phosphor Bronze Snap-In and Contacts
  • Ni-Plated Steel Hex Screw
  • LCP (Liquid Crystal Polymer) Glass Reinforced Housing
  • PBT (Polybutylene Terephthalate) Insulation
  • Operating Temp. -25 Celsius to 70 Celsius
Product Sheet
